DVR Set Up Guide

Thank you for choosing Motormax DVR
Reliable recording with high definition camera performance

This guide aims to simplify the process of DVR setup and data extraction, as well as guide the user through some of the most common procedures. Click the links below to go straight to the relevant topic.
How to extract data from the small style DVR
How to extract data from the large style DVR
How to save footage into evidence files
How to save footage into evidence files
Extracting data via USB to PC
Large DVR case style



1. Locate the handle on the end of the DVR casing. Pull down to open.
2. Pull the cassette out completely from the DVR body.
3. Turn around the cassette to expose the rear side.
4. Open the box that contains the blue USB cable and adapter.
5. Remove the cap that covers the adapter's plug socket.
6. Plug the adapter into the cassette.
7. Plug one end of the blue USB cable into the adapter.
8. Plug the other end of the USB cable into the PC USB port.
Motormax utility water company camera solutions
Small DVR case style



1. Unlock the DVR body with the key provided.
2. Release the tabs either side at the front.
3. Slide cassette forwards and out using the handle.
4. Turn around the cassette to expose the rear USB port.
5. Identify blue USB cable.
6. Plug the USB into the cassette rear.
7. Plug the other end of the USB cable into the PC USB port.


How to download footage from online software to PC
1. Log into DVR software
Open the Motormax DVR software. The login box should appear. Ensure your server IP number has been entered, visible in the box. Enter Username and Password and click 'OK'
2. Select 'Playback' button
At the top of the screen there are three main buttons beside the Motormax logo. Select the 'Playback' button, the second option in. Playback allows you to review stored footage.
3. Locate vehicle reg numbers
Your vehicle's registration will be displayed on the left hand side of the screen. Double click on the vehicle which you need to access footage for. Several vehicles can be selected.
4. Select date of evidence

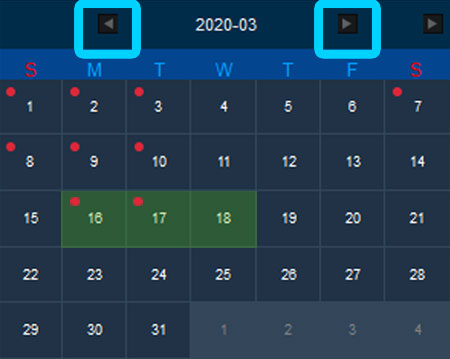

A calendar will appear below the reg area. Dates will be selectable from here. A red circle indicates there is GPS data saved. A green box indicated there is footage saved.
5. jjsns
Select the
6. Select 'scissors' button
At the bottom of the screen a timeline area will appear with editing options. Select the 'scissors' icon. This will load time editing lines.
7. Locate vehicle reg numbers
Use the green dotted sliders to create a blue zone around the time slot you wish to capture footage for. Click the 'OK' button to proceed.
8. Select cameras to download
Select specific channels (cameras) at this point by ticking the boxes. The time 'Start Time' and 'End Time' of the footage can be edited here also.
9. Selecting export type
Use the forward and back arrow buttons to see newer or older footage from different dates. Double click on the date desired.
6. Select 'scissors' button
At the bottom of the screen a timeline area will appear with editing options. Select the 'scissors' icon. This will load time editing lines.
7. Locate vehicle reg numbers
Use the green dotted sliders to create a blue zone around the time slot you wish to capture footage for. Click the 'OK' button to proceed.
8. Select cameras to download
Select specific channels (cameras) at this point by ticking the boxes. The time 'Start Time' and 'End Time' of the footage can be edited here also.
